Description
Railroad Short Name: UP
In 1984, EMD unveiled the first four SD60 demonstrator units. The SD60 was equipped with a 3,800 horsepower, 16 cylinder, turbocharged 710 engine. Five years later, EMD began offering the SD60 with the “safety” wide nose cab, thus creating the SD60M. Union Pacific was the first to acquire the SD60M followed by Burlington Northern, Soo Line, and Conrail. Conrail also ordered SD60I “isolated cab” versions. BN’s SD60M’s went to BNSF while Conrail’s units were split between Norfolk Southern and CSX.
UP Features:
- Large EMD plow
- Front ditch lights
- Nose headlights

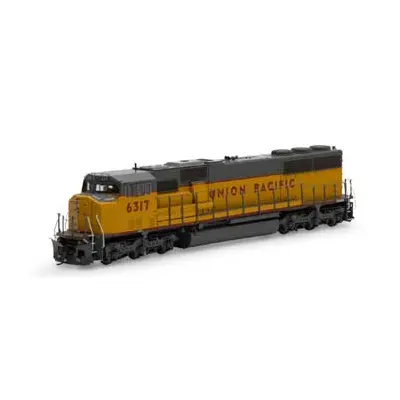

- #6317
- As-delivered appearance in 1993. Red-sill
- Leslie 3-Chime horn
- fire cracker antenna.

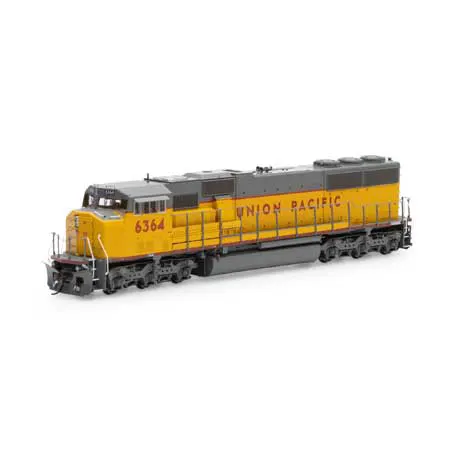

- #6364
- As-delivered appearance in 1993. Red-sill
- Leslie 3-Chime horn
- fire cracker antenna.
Locomotive Features:
- Coupler cut levers
- MU hoses
- Trainline hose
- See through cab windows
- Full cab interior
- Walkway tread
- Windshield wipers
- Lift rings
- Wire grab irons
- Sander lines
- Fine-scale Celcon handrails for scale appearance
- Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes
- McHenry® scale knuckle couplers – Kadee® compatible
- DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
- Scaled from prototype resources including drawings, field measurements, photographs, and more
- Accurately painted and  printed paint schemes
- Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
- All-wheel drive with precision gears for smooth & quiet operation
- All-wheel electrical pickup provides reliable current flow
- Wheels with RP25 contours operate on all popular brands of track
- LED Lighting for realistic appearance
- Heavy die-cast frame for greater traction and more pulling power
- Fully-assembled and ready-to-run
- Minimum radius: 18″
Sound Features:
- Onboard DCC decoder with SoundTraxx Tsunami2 sound
- Sound units operate in both DC and DCC
- Engine, horn, and bell sounds work in DC
- All functions NMRA compatible in DCC mode
- Precision slow speed control
- Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
- Many functions can be altered via Configuration Value (CV) changes
- CV chart included in the box
