Description
Railroad Short Name: EL

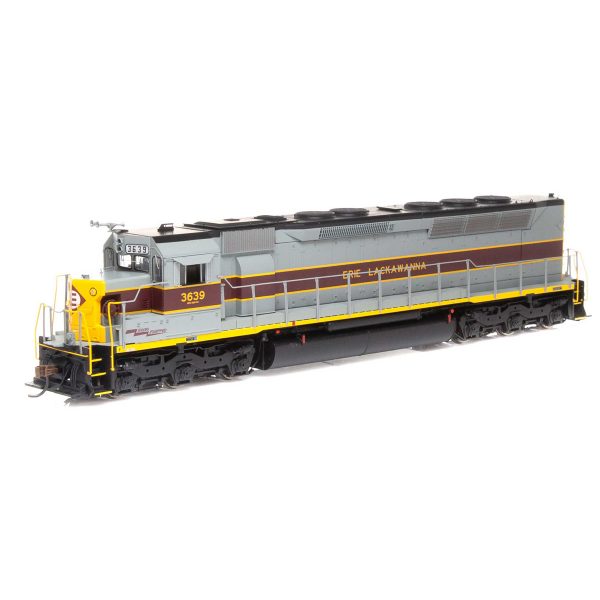

#3636, #3637, #3641, #3642, #3648, #3650 & #3653 Locomotive Features
- As-built EL freight service SDP45 (SD45M)
- Low profile roof details: dust bin hatch, dynamic brake fans, exhaust stack, engine compartment “T” vent, and radiator fans
- Leslie SU-3L-R air horn mounted on low clearance bracket
- Front and rear MU hose catch tray with bottom reinforcing strip
- Trainline, and 3-hose MU clusters with silver ends
- Front and rear deck-mounted MU stands
- Front and rear early “straight” coupler cut levers
- Dual single louver battery box doors and sub-base doors with stiffener rib
- Standard “35-Line” cab with armrests and sunshade tracks
- Low profile standard range dynamic brake housing with retrofitted side vents
- Rectangular grid radiator intake grilles
- 5,000 gallon fuel tank
- Frame mounted bell
- Flexicoil-C Trucks with brake cylinder position per prototype and Hyatt bearings
- All-new LED lighting
- Rubber MU hoses for durability
- Models equipped with DCC+Sound will have the new 645E3 20-cylinder prime mover recording by SoundTraxx
- Safety tread on walkways
- Fine-scale handrails for scale appearance
- Factory applied wire grab irons
- Windshield wipers
- See through cab windows
- Detailed and painted cab interior
- Sliding side cab windows
- Metal lift rings
- Fully-assembled and ready-to-run
- DCC-ready features Quick Plug™ plug-and-play technology with a 21-pin NEM connector
- Scaled from prototype resources including drawings, photographs, and more
- Accurately painted and printed paint schemes
- Body mounted McHenry operating scale knuckle couplers
- Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
- All-wheel drive with precision gears for smooth and quiet operation
- All-wheel electrical pickup provides reliable current flow
- Wheels with RP25 contours operate on all popular brands of track
- New LEDs for realistic appearance
- Bi-directional constant lighting so headlight brightness remains constant
- Heavy die-cast frame for greater traction and more pulling power
- Packaging securely holds for the model for safe storage
- Minimum radius: 18”
- Recommended radius: 22”
SOUND EQUIPPED MODELS ALSO FEATURE:
- Onboard DCC decoder with SoundTraxx Tsunami2 decoder
- Sound units operate in both DC and DCC
- Some functions are limited in DC
- Engine, horn, and bell sounds work in DC
- All functions NMRA compatible in DCC mode
- Slow speed control
- Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
- Many functions can be altered via Configuration Value (CV) changes
- CV chart included in the box
#3655, #3659, & #3664 Locomotive Features
- Safety tread on walkways
- Fine-scale handrails for scale appearance
- Factory applied wire grab irons
- Windshield wipers
- See through cab windows
- Detailed and painted cab interior
- Sliding side cab windows
- Metal lift rings
- Fully-assembled and ready-to-run
- Scaled from prototype resources including drawings, photographs, and more
- Accurately painted and printed paint schemes
- Body mounted McHenry operating scale knuckle couplers
- Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
- All-wheel drive with precision gears for smooth and quiet operation
- All-wheel electrical pickup provides reliable current flow
- Wheels with RP25 contours operate on Code 70, 75, 83, and 100 rail
- Incandescent bulbs for realistic appearance
- Bi-directional constant lighting so headlight brightness remains constant
- Heavy die-cast frame for greater traction and more pulling power
- Minimum radius: 18″
- Recommended radius: 22″
- For a complete list of features, visit Athearn website
