Description

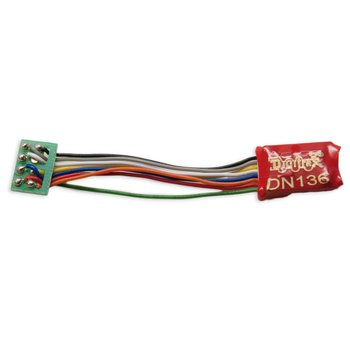

Fits Many N/HO Locomotives with 8 pin Medium Socket
- Size: .55” x .404” x .2”
- 13.9mm x 10.3mm x 5 mm
- N/HO Scale
- Digitrax Easy Connect 8 Pin Harness
- 1.0 Amp/1.5 Amps Peak
- 3 FX3 Functions, 0.5 Amp
FX3 Function outputs for prototypical lighting effects and on/off control:
- Constant Brightness Lighting with directional or independent control.
- Optimized selectable LED or incandescent lamp operation Realistic Effects like Ditch lights, Mars lights, strobes, and many more
- Configurable Pulse Function available on all function outputs.
- FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
- Function Mapping for custom function setup.
- Master Light Switch turns off all lights & functions with one keystroke.
- Advanced Consist Function Controls.
Digitrax LocoMotion® System-Your locomotives look like the real thing.
- The Digitrax LocoMotion System makes them run like the real thing, too!
- Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
- Torque Compensation.
- 128 Speed Step operation (14 or 28 steps can also be used).
- Momentum with acceleration and deceleration.
- Normal Direction of Travel is user selectable.
- Switching Speed feature for easier and faster access to yard speeds.
- 3 Step Speed Tables set start, mid and max voltage for custom control.
- 28 Step Speed Tables with 256 level resolution for precise control.
– Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
– 2 Digit and 4 Digit Addressing.
– Basic, Advanced & UniVersal Consisting.
– SuperSonic motor drive for silent operation.
– Direct mode programming.
– Decoder Reset CV with or without speed table reset.
– Transponder Equipped ready for transponding on your Layout.
– Motor Isolation Protection helps prevent damage to your decoder.
– Automatic Analog Mode Conversion when running on DC layout.
– Decoder Lock for individual programming of multiple decoders in one loco.
– Digitrax “No Worries” Warranty.
