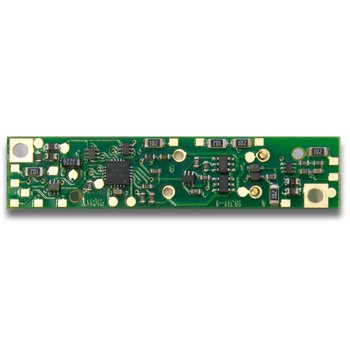

Digitrax – DN166I1A – N DCC Decoder, Intermountain FT A units w/ Motor Contact “shoes”, 6-Function, 1.5 Amp

Description

• For Intermountain N scale FT A units with motor contact “shoes”
• 6 FX3 Functions
• .472” x 2.165” x .098”
• 11.98mm x 54.99mm x 2.4 mm
• Replaces DN163I1A

FX3 Function outputs for prototypical lighting effects and on/off control:

• Constant Brightness Lighting with directional or independent control.
• Realistic Effects like Ditch lights, Mars lights, strobes, and many more
• Configurable Pulse Function available on all function outputs.
• Optimized selectable LED or incandescent lamp operation.
• FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
• Configurable FX3 Pulse Function available on all function outputs.
• Function Remapping for custom function setup.
• Master Light Switch turns off all lights & functions with one keystroke.
• Advanced Consist Function Controls

Digitrax LocoMotion® System-Your locomotives look like the real thing.

• The Digitrax LocoMotion System makes them run like the real thing, too!
• Torque Compensation for smooth as silk silent operation.
• 128 Speed Step operation (14 or 28 steps can also be used).
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• Switching Speed feature for easier and faster access to yard speeds.
• Simple 3 Step Speed Tables for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control.
• Scaleable Speed Stabilization (Back EMF)

• Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
• Digitrax Easy Connect 9 Pin Harness
• Series 6 Decoder Features.
• 2 Digit and 4 Digit Addressing.
• Basic, Advanced & UniVersal Consisting.
• SuperSonic motor drive for silent operation.
• Direct mode programming.
• Decoder Reset CV with or without speed table reset.
• Transponder Equipped ready for transponding on your Layout.
• Automatic Analog Mode Conversion when running on DC layout.
• Motor Isolation Protection helps prevent damage to your decoder.
• Decoder Lock for individual programming of multiple decoders in one loco.
• DCC Compatible.
• FCC Part 15, Class B RFI compliant.
• Digitrax “No Worries” Warranty.
