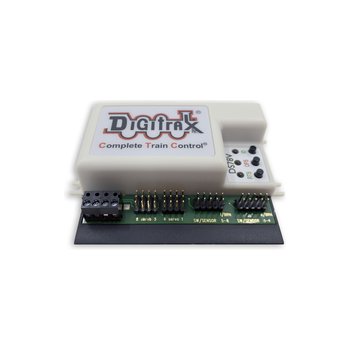

Digitrax – DS78V – DCC Stationary Decoder, Eight Servo LocoNet Stationary & Accessory Decoder for Turnout Control

Description

Eight 9G servo decoder for 2-position Slow-motion turnouts.

• Configurable to control eight 3-position semaphores.
• Works with compatible LocoNet Systems.
• Plug and play connections.
• Option setup switches for configuration.
• On-layout remote programmability via LocoNet.

• 16 System Routes, with EZ-Route setup.
• Routes remotely editable using DT602 with latest software.
• 16 input lines for Switch and Detection inputs.
• Optional 16 direct hardware Route triggers.
• Software field update/IPL over LocoNet.
• DC 2mm 12V jack for reliable power input.
• Supports two DSXC4 input connector boards and cables.
• Supports two BD4N’s for block detection reporting.
• Supports 8 DSXCP1 Fascia control and direction indicators.
• Supports DSXCP1 indicating ‘servo in motion’.
• Optional DCC track input for limited feature capabilities.
