Description
Railroad Short Name: CR

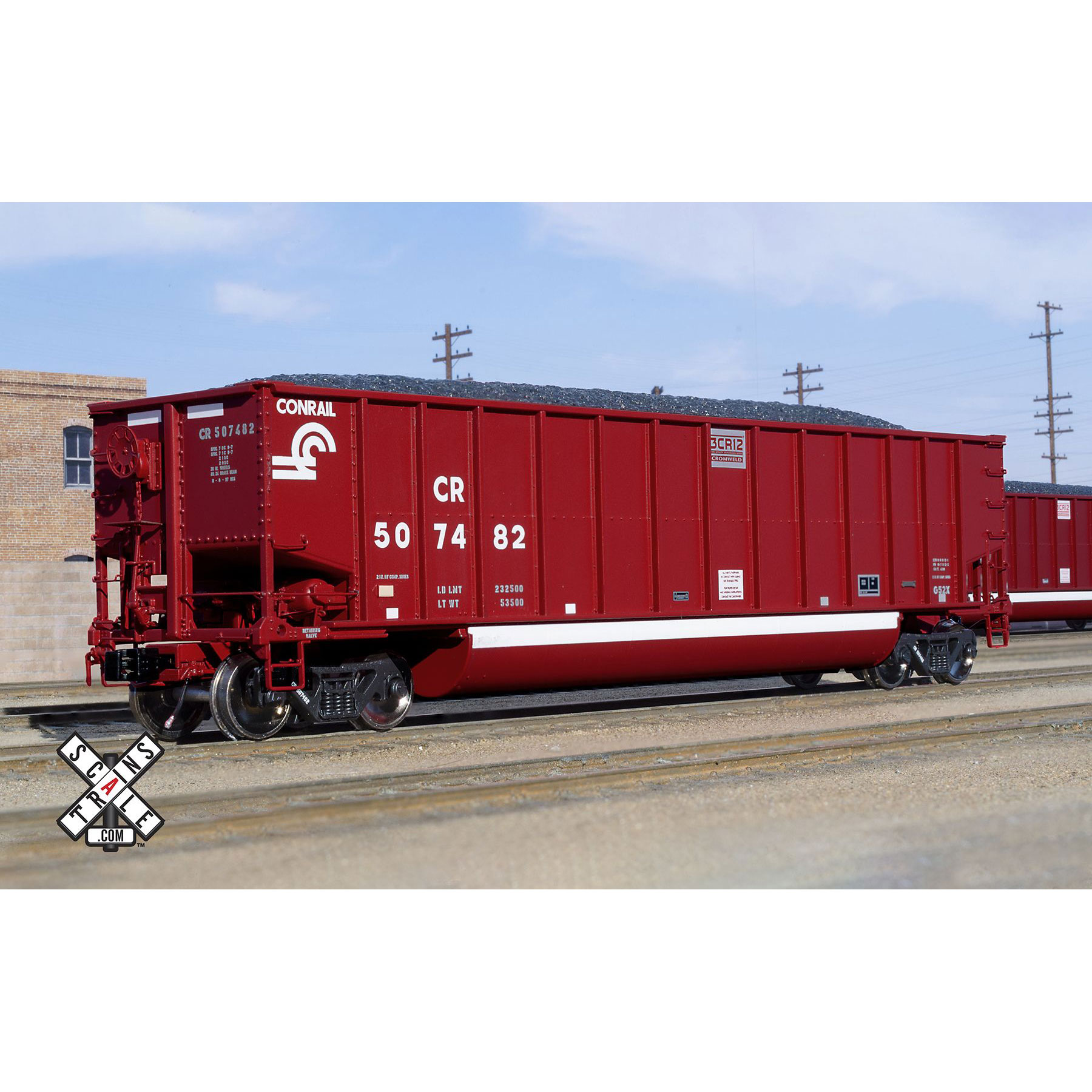

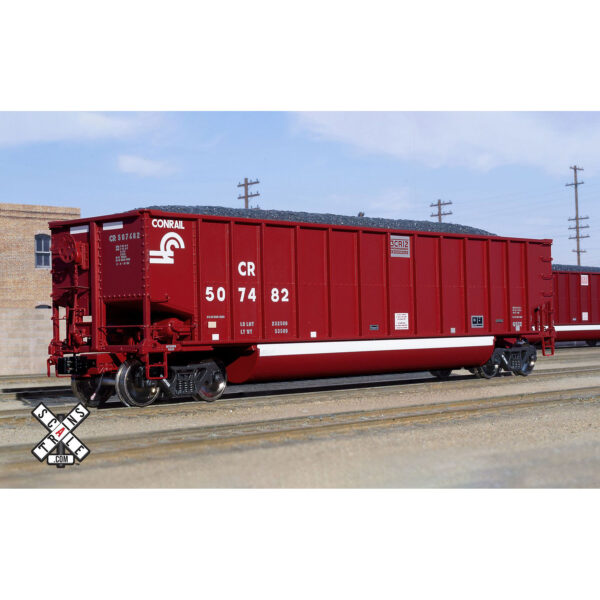

In 1997, Conrail built 600 Bethgon G52X Coal Gondolas at the Hollidaysburg Car Shop from engineering drawings supplied by Johnstown America. After the breakup of Conrail, most of these cars went to Norfolk Southern where they can be found in almost every Norfolk Southern coal train still today.
Prototype Specific Features:
- Era: Late 1997 – Present
- CR Series 507401-508001 (G52X), Built 7-12/97
- 4 groups of road numbers
- All road numbers in each group have small Conrail logo variants and share common LD LMT and LT WT data which is unique to each group
- Group 1 road numbers: 507774 and 507775
- Group 2 road numbers: 507778, 507835 and 507836
- Group 3 road numbers: 507788, 507835 and 507836
- Group 4 road numbers: 507471, 507508, 507567, 507569, 507583, 507598, 507641, 507656, 507762, 507786, 507794, 507822, 507874, 507911, 507923, 507940, and 507948
- 24 new road numbers in total
- Fully assembled
- Body comprised of several parts including main body, separate end sheets for both the A and B car end, side bearing supports and two internal braces
- Separate brake detail including brake cylinder and arm, air reservoir, control valve, brakewheel, brake wheel housing, brake wheel housing rod and wireform brake wheel housing rod guide.
- Plastic and wire form brake plumbing including auxiliary reservoir pile, emergency reservoir pipe, branch pipe and brake cylinder pipe
- Wire form retainer valve rod and photo etched retainer valve rod supports
- Factory-applied metal grab irons, coupler cut levers, and trainline hoses
- Intricate brake plumbing
- Photo-etched stainless-steel see-through end crossover platforms
- 32 wire form grab irons
- Diecast center sill
- Diecast end frame floors with integral coupler box
- ASF Motion Control 100-ton trucks with rotating bearing caps
- Coupler bars
- Trainline hoses
- Two version of coal loads, sold separately
- SXT81340 Offset
- SXT81341 Symmetrical
- Minimum radius: 18”
- Recommended radius: 22”
- Printing and lettering legible even under magnification
- Accurately profiled .110″ wheels
- Weighted to Industry standards for reliable operation
- Operates on Code 70, 83 and 100 rail
All Rivet Counter Freight Cars Feature:
- Fully assembled
- Factory-applied metal grab irons, coupler cut levers, and trainline hoses
- Intricate brake plumbing
- Printing and lettering legible even under magnification
- Accurately profiled .110″ wide wheel tread
- Weighted to Industry standards for reliable operation
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
- Color matched to existing Tru-Color Paint colors whenever possible
