Description
Railroad Short Name: BNSF

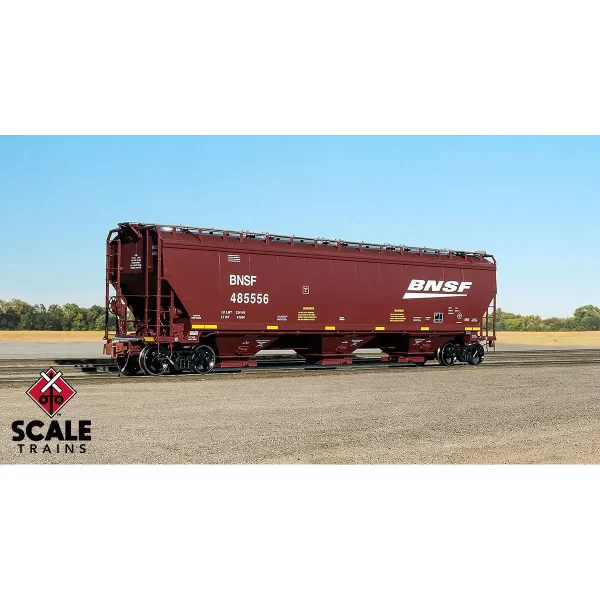

Designed from builder blueprints, the all-new Gunderson-GIMSA/Concarril 5188 Cubic Foot Covered Hopper features four different body styles, two different hatch types, three different outlet gate options, and numerous factory-applied parts. They are commonly seen in unit grain trains as well as mixed manifest freights and can often be found alongside Trinity 5161cf Covered Hoppers.
Road Number Specific ScaleTrains
- Era: Early 2007 to Present
- Series 485100 to 486999, built 3-11/07
- Fully-assembled
- Multiple road numbers
- 12 panels, 10 intermediate panels with varying widths
- Roping eyes mounted on the underside of the car bolster
- Metal ATP Quantum Plus Roof Hatches
- ATP 30 X 30 Gravity Outlet Gates for grain
- See-through photo-etched stainless-steel metal roofwalk with metal grab irons
- See-through photo-etched stainless-steel metal end crossover platforms
- Factory-applied ladders with metal rungs
- Photo etched metal stirrup steps
- Finely detailed brake plumbing, linkage, triple valve, cylinder, and actuator
- Brake wheel, stand, and chain
- Factory-applied wire trainline pipe with brackets
- Durable die-cast metal semi-scale Type E lower shelf knuckle couplers
- ASF Ride Control Trucks with finely rendered raised foundry data, rotating bearing caps, separate brake beams, and side bearing detail
- 33” machined metal wheels
- Accurately profiled .110″ wide wheel tread
- Factory-applied shaker brackets, metal grab irons, coupler cut levers, and trainline hoses with silver gladhands
- Conspicuity stripes
- Printing and lettering legible even under magnification
- Paint colors match Tru-Color Paint color: TCP-199 ATSF freight car red
- Weighted to Industry standards for reliable operation
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
- Minimum radius: 18”
- Recommended radius: 22”
