Description

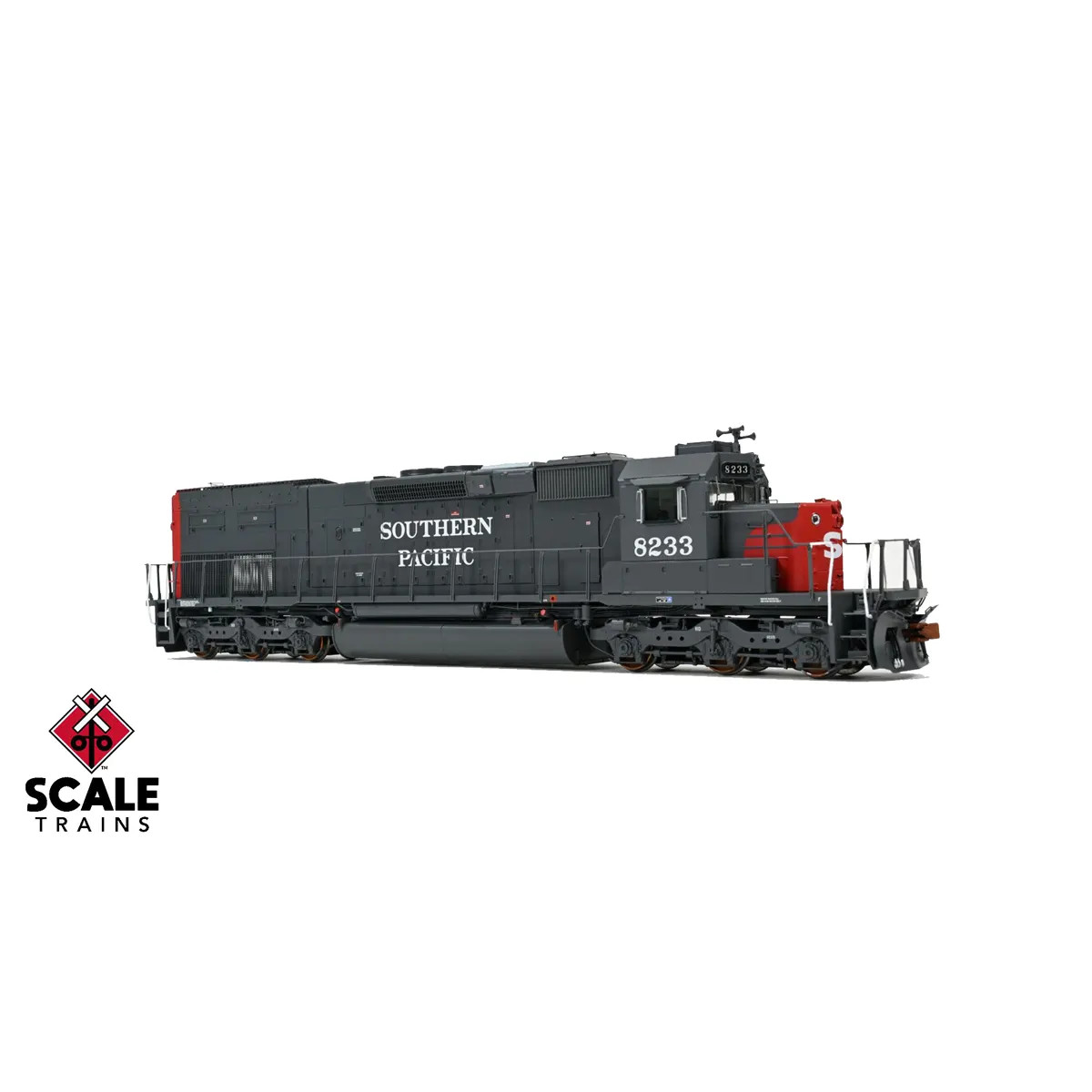

Railroad Short Name: SP
Features:
- Era: 1980s
- SP Series 8230 to 8299; built 3-7:1980
- Fully-assembled
- Multiple road numbers
- No truck ground lights (prototype not equipped)
- LED-Illuminated rectangular walkway lights mounted between front and rear sanding valve doors and round walkway light, aft of raised walkway duct*
- Equipped with either:
- LED-illuminated front and rear red LED Pyle-National 17540 “UDE” Gyralites*
- LED-illuminated front and rear dual LED Pyle-National 20585 (Translite) “Gyralite” signal light*
- LED-illuminated front and rear stand-off tri-color class lights**
- Printed number boards with separately controlled backlit LED-illumination*
- Directional LED headlights
- Front late SP/UP-style pilot plow with MU hose doors and grab irons
- Front and rear 3-hose MU hose clusters with silver gladhands
- Front “tall” stepwells with see-through steps and rear “ladder” steps
- 88” low short hood with wheel handbrake
- Bolted battery box doors with wide louvers
- Late cab sub-base doors with lift-off hinges
- SP nose headlight package
- Dash-2 cab with welded side window panels, SP/SSW blue flag bracket, and “L” front window
- Detailed cab interior with separate floor, rear wall, seats, and standard AAR control stand
- Original cab front door
- Sliding cab side windows
- Standard Mirror mounted fore of cab side windows, both sides
- Rear cab side vent on left side
- Standard EMD sunshades and long sunshade tracks
- Vapor Corp. cab roof HVAC
- Lost-wax brass Nathan AirChime P24R1 (“P-3”) three-chime horn on clearance bracket; offset to engineer’s side and mounted on number board housing
- “Whip” radio antenna mounted on ground plane over dust bin
- Late electrical cabinet “zig-zag” seam, closer to rear of cab
- Welded ECAFB (late)
- Late inertial air intake grilles with top and bottom drip rail
- “Post 1980” extended-range dynamic brake with exhaust silencer
- Front straight uncoupling levers with loop handles and two inner and two outer mounting brackets
- Straight rear uncoupling lever with four mounting brackets
- Handrail set with anticlimber front; inward facing rear end rail mounting brackets and chain
- Handrail ends and step faces painted white
- Front and rear 3-hose MU hose clusters with silver gladhands
- Semi-scale coupler buffer equipped with ScaleTrains.com durable metal semi-scale E Type knuckle couplers
- Notched pilot faces with high mounted angled lifting slots
- Pilot-face mounted MU receptacle
- Front narrow “blunt” front anticlimber rear full-width front pilot anticlimber
- Scale sectioned treadplate detail on walkways
- Accurate hood door and long hood detail
- “Post-1980” exhaust silencer
- See-through dynamic brake intakes with resistor grid detail
- See-through standard 48” dynamic brake fan housings with fan blades visible inside
- Detailed see-through radiator intake compartment with front and rear bulkheads, floor treadplate, and fan motor detail
- Etched-metal radiator exhaust grills with radiator shutters visible underneath
- Separate radiator fan grab iron
- Underbody frame rail with separate plumbing and traction motor cables
- Detailed HT-C trucks with Hyatt bearing caps, late center axle snubbers, sanding lines and brackets, and D-77 traction motor and air duct details
- Dimensionally accurate truck centers
- Speed recorder first axle, left side
- Forward facing handbrake chain mount for Flexicoil trucks
- Four-hole SP jacking pads
- Spare knuckle holders on fuel tank near fuel filler
- Sill-mounted EFCO
- Frame-mounted bell
- Double Graham-White (Prime) brand 975-075 (can style)
- Standard air tanks
- 4,400 gallon fuel tank with reinforced tank edges where sides meet the tank ends, dual fuel fillers, dual vertical gauges, round gauge on stand and vertical breather pipe
- Factory-applied wire grab irons, wire lift rings, windshield wipers, trainline hoses with silver gladhands, sand hatch covers, and much more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Printing and lettering legible even under magnification
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
- Minimum radius: 18”
- Recommended radius: 22”
DCC & Sound Features:
- ESU LokSound 5 DCC & Sound decoder with “Full Throttle”
- Dual cube-type speakers
- EMD 16 Cylinder 645E3 prime mover
- ESU designed “PowerPack” with two super capacitors****
- Operates on both DC and DCC layouts
