Scale Trains HO Rivet Counter SD45 Seaboard Coast Line

Please note: Pictures are representations; some road numbers may not be shown.

For a comprehensive list of features, please visit the manufacturer’s website.

* To view the product SKU, click on the specific road number or set number you want. To add an item to your cart, click on the desired road number or set number, then click “Add to Cart.”

This product is currently out of stock and unavailable.

SKU: 8126 Category: Tag: Railroad Short Name: SCL

Description

Railroad Short Name: SCL

Locomotive Features:

  • Era: As Delivered, series 2024-2037, built 9-10/71

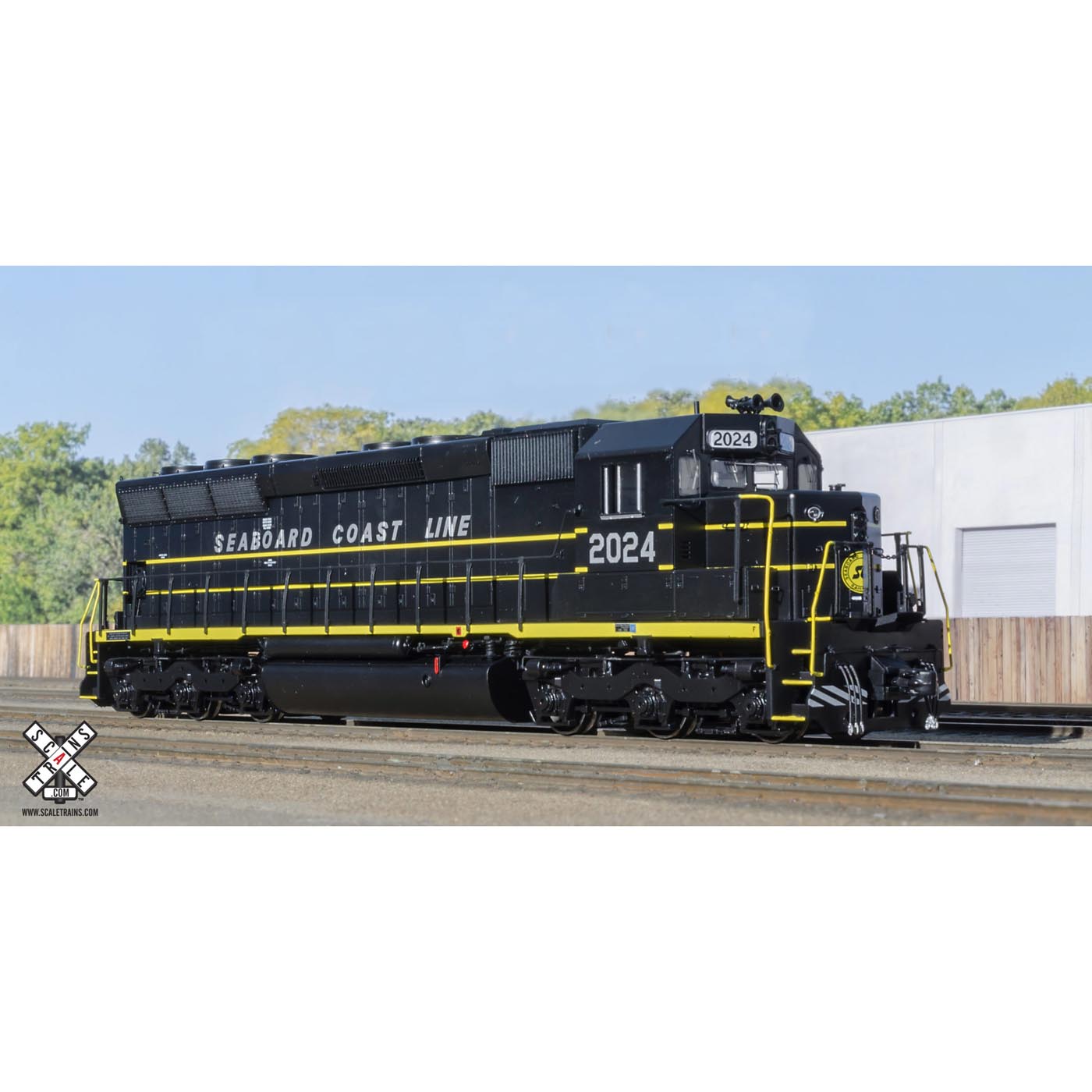

  • Road numbers 2024, 2028, 2031, 2034
  • Without the “Pulling for you” slogan on battery box and cab subbase doors
  • Era: Mid 1970’s – Early 1980’s, series 2024-2037, built 9-10/71

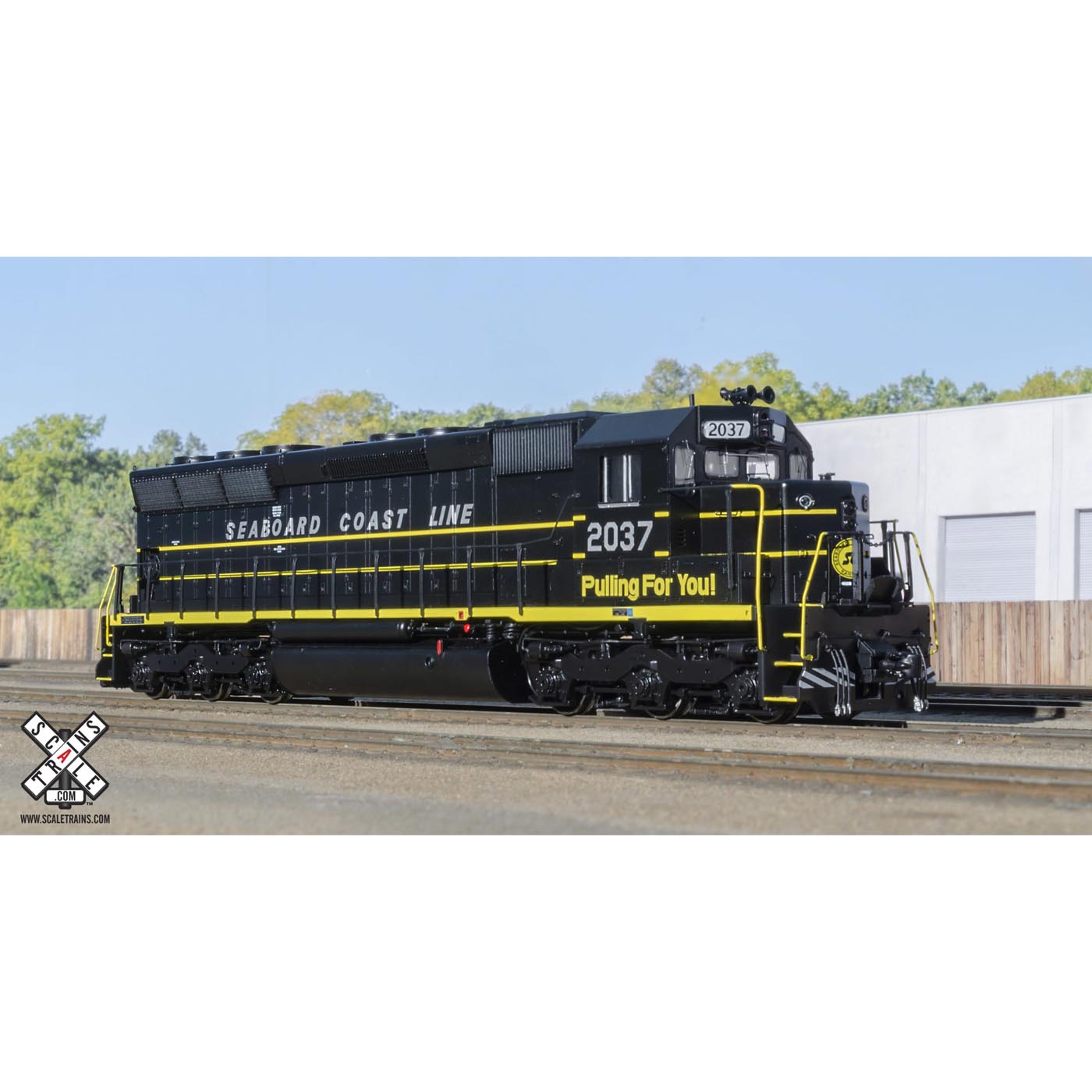

  • Road number 2037
  • With the “Pulling for you” slogan on battery box and cab subbase doors
  • Era: Mid 1970’s – Early 1980’s, series 2038-2044, built 9-10/71
  • Road number 2040
  • With the “Pulling for you” slogan on battery box and cab subbase doors
  • “35-Line” cab with standard front windshields
  • Standard EMD sunshades and long sunshade tracks
  • Standard EMD low headlight in face of short hood
  • Front and rear hose catch trays
  • Operating LED-lit Pyle-National “Gyralite” in numberboard housing (upper lens is standard, and lower red lens is a “UDE” light)
  • Operating LED tricolor flush-mounted class lights with raised gasket
  • 81” low short hood without handbrake
  • Late drop grabs and standard NBW mounting on nose front and top
  • Latched battery box doors with narrow louvers
  • Latched cab sub-base doors with early hinges
  • Front early small deck extension
  • Pivoting front and rear drop steps
  • “Tall” stepwells with see-through steps
  • “Late” pattern walkway treadplate
  • Rectangular walkway lights
  • No mirrors or wind wings
  • Lost-wax brass Leslie S-5T-RRO horn, center rear of number board housing.
  • ­­Motorola ASP-16 “Firecracker” communications antenna mounted on cab roof
  • Standard electrical cabinet seam and bolted alternator door
  • Small ECAFB
  • Late (ribbed) blower duct housing
  • Early inertial air intake grilles without drip rails
  • Late (long forward taper) standard-range dynamic brakes with cooling vents and “T” vent on top of roof
  • Rectangular-pattern radiator intake grill mesh
  • Short walkway duct (four short stanchions)
  • Front and rear straight uncoupling levers with four brackets
  • Handrail set with deck mounted outer end rail stanchions
  • 3-hose MU hose clusters with silver glad hands
  • Late deck-mounted MU receptacle
  • Tall “Zig-Zag” pilot face
  • Tall jacking pads with holes
  • Tab-mount EFCO
  • Frame-mounted bell
  • Salem air filter (accordion style)
  • 4,000-gallon fuel tank with single fuel filler, single vertical fuel gauges, and round fuel gauge on right tank side
  • Detailed Flexicoil (high-mount brake cylinder) trucks with Hyatt bearing caps, and sanding lines and brackets
  • Speed recorder second axle, left side
  • ACI label placards included in polybag for optional installation by the modeler
  • Fully-assembled
  • Printed and LED-lighted number boards
  • Scale sectioned treadplate detail on the walkways
  • Underbody frame rail with separate plumbing and traction motor cables
  • Accurate hood door and long hood detail
  • Accurately profiled dynamic brake housings
  • See-through dynamic brake intakes with resistor grid detail
  • Detailed cab interior with separate floor, rear wall, seats, and standard AAR control stand
  • Sliding cab windows
  • Factory-applied wire grab irons, wire lift rings, windshield wipers, snowplows, horns, coupler cut levers, trainline hoses with silver gladhands, sand hatch covers, and much more
  • Semi-scale coupler buffer equipped with ScaleTrains.com durable metal semi-scale Type “E” knuckle couplers
  • Directional LED headlights
  • All-wheel drive
  • All-wheel electrical pick-up
  • Motor with 5-pole skew-wound armature
  • Dual flywheels
  • Printing and lettering legible even under magnification
  • Color matched to Tru-Color Paint colors whenever possible
  • Operates on Code 70, 83 and 100 rail
  • Packaging safely stores model
  • Minimum radius: 18”
  • Recommended radius: 22”

DCC Ready Features:

  • Operable using a DC power pack
  • DCC-ready with 21-pin connector

Additional information

Weight 2.5 lbs
Dimensions 14 × 6 × 3 in
